Enhance Recovery Positive Isolation Valves
The customer initiated new engineering standards requiring positive and provable isolation. Their prior solution was not able to support the new requirements so they turned to Chromatic and the HCV product line. Chromatic valves have become their standard within all their systems.
| Valve Supplied | |
|---|---|
| Size | 2", 3", and 4" ANSI 900 and 1500 class |
| Body Material | WCC Carbon steel with electrolysis nickel plating |
| Internals | Carbon steel with electrolysis nickel plating |
| Trim | Teflon seat with Peroxide Cured Buna N seals |
| Port | Full Port |
| Connections | Raised Face Flanged and Ring Type Joint |
| Service Conditions | |
|---|---|
| Media | Mixture of CO2, water and formation particulate |
Challenge
They alternate, in seven day periods, injecting CO2 and water into the formation.
They alternate, in seven day periods, injecting CO2 and water into the formation. The specific installation for the HCV Valve was to replace previously used gate valves because of a new internally imposed requirement by the end-user's engineering group where these valves were required to provide positive/provable isolation (Double Block and Bleed). Historically, the failure mode of the gate valves were the inability to positively isolate the CO2 from water allowing the development of residual carbonic acid damaging valve bodies and seals.
Solution

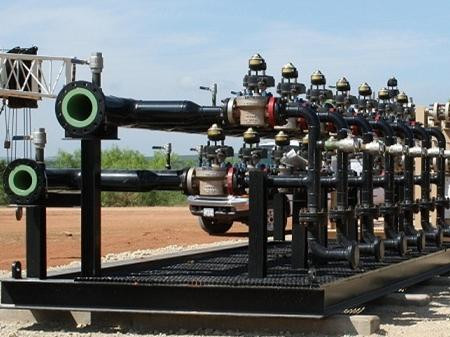

Chromatic initially supplied two 2” ANSI 1500 Class block valves in April 2008 for testing purposes. Valves performed satisfactorily over the span of the following year. The customer installed six (6) 4” ANSI 600 Class, Double Block and Bleed valves to test the reliability of the DBB design. After the successful testing, the customer has placed multiple orders with a cumulative count of more than 400 valves in their West Texas fields worth more than $1 million dollars of installed HCV Valves.
